Customized Overall reflect operation lamp China factory with reasonable price, Overall Reflect Operation Lamps are vital in ensuring that surgical procedures are performed under optimal lighting conditions, significantly contributing to the success and safety of surgeries.

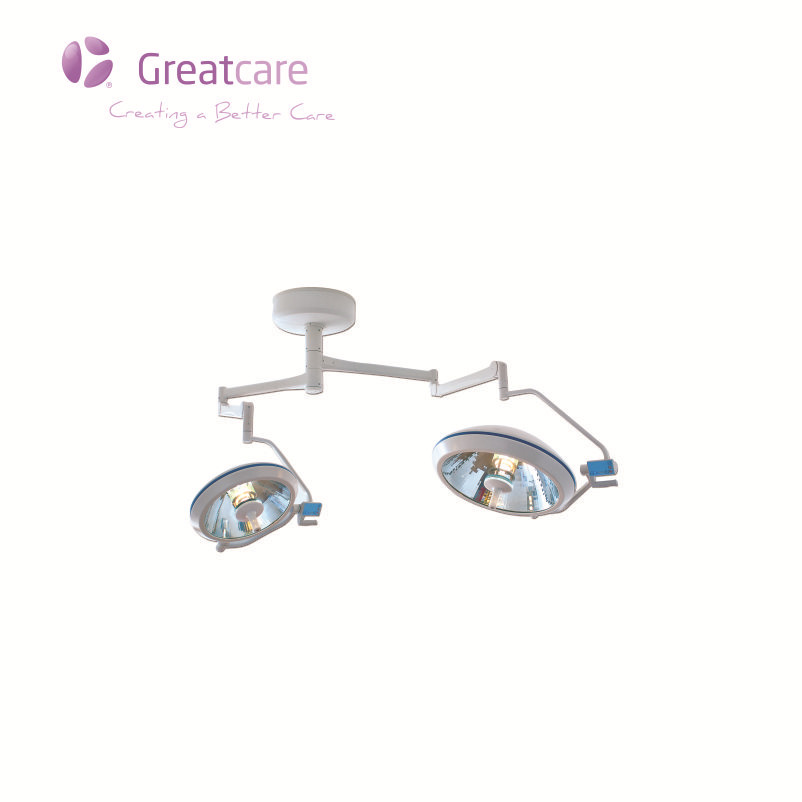

1. Product Introduction of Overall Reflect Operation Lamp
The streamlined cover of the lamp in this series is totally sealed the wquipped with endurable sterilized handle, which is convenient of cleaning and sterilization. Multi-angle reflect, offers the best visual effectiveness for the surgeons. It's hanging system, which has groups of joints, adjusts in any directions and accurate orientation. It can finish the switch between bulbs within 0.3 seconds by automatic inspection and bulb intelligent monitoring.
2. Product specification of Overall Reflect Operation Lamp
| Ref. No. : |
Illumination intensity (max): |
Power of bulb: |
Depth of focus: |
Diameter of luminous Spot: |
Dia. of lamp disc: |
Effective area: |
Color temperature: |
CRI: |
Ir ration of absorption: |
Rated voitage: |
| GCL110115 | 105,000lux |
150W 24V Tungsten halogen |
110cm | 12-25cm | 520mm | 1352cm² | / | / | / |
~110V±11V 60HZ±1HZ |
| GCL110117 | 145,000lux |
150W 24V Tungsten halogen |
110cm | 15-28cm | 700mm |
2462cm² |
4300k（±5%） | Ra≥93 | 99% |
~220V±22V 50HZ±HZ |
Adjustment range of illumination intensity (max): 100%-50%
Service life of bulb: ≥1000h
3. Feature of Overall Reflect Operation Lamp
● Rated power of bulb: 24V
● The lowest height for install lation: 2700mm
4. Direction for use of Overall Reflect Operation Lamp
● Ensure that lamp is correctly positioned cover the surgical field to provide optimum illumination. Adjust height and angle as required.
● Use the adjustable controls to set the desired focus and light intensity according to the specific requirements of the procedure.
● Adjust the color temperature to provide the best contrast and visibility for different tissues and procedures.
● Regularly sterilize the handles and other parts that come into contact with the sterile field. This helps to maintain hygiene.
●Follow the manufacturer’s guidelines for routine maintenance to ensure the lamp remains in good working condition.
5. FAQ of Overall Reflect Operation Lamp
Q: What is the delivery time if I place my order?
A: Delivery time is around 45 days, if you have special requirements, please check with us, we will try our best to meet you.
Q: Can I get samples before my order?
A: Free samples are available, freight charge is to customer’s account.
Q: Can you supply the relevant documentation?
A: Yes, we can provide most documentation including CE, ISO13485, FSC, FDA where required.
Q: What’s the transportation way?
A: DHL, TNT, FEDEX, UPS, EMS, By sea or By Air.
